Circular Holes

Discussion in 'Mapping Questions & Discussion' started by The Endangered Spycrab, Jan 11, 2016.

  1. The Endangered Spycrab

    The Endangered Spycrab L1: Registered

    Messages:
    29
    Positive Ratings:
    0
    Is there anyway I can make a circular hole in a block with the clipping tool or anything?

  2. norfolk terrier

    norfolk terrier L3: Member

    Messages:
    138
    Positive Ratings:
    208
    Use the arch tool, make a 360 degree circle (not filled in) fit in your hole. Then go to the vertex edit tool and select the edge vertices and drag them out to meet the outer walls.

  3. The Endangered Spycrab

    The Endangered Spycrab L1: Registered

    Messages:
    29
    Positive Ratings:
    0
    I can't seem to do that. In the vertex edit tool, It won't allow me to drag the sides. When I switch back to the selection tool, It deselects the sides.

  4. MoonFox

    MoonFox L10: Glamorous Member

    Messages:
    737
    Positive Ratings:
    72
    you have ctrl(CMND) + shift + C which is hammer's cut tool, if you want to make holes. Two cylinders should fix your problem, one to form the base ring, the other to be enclosed and act as the hole. I hope this has helped, but tube tunnels are a real pain in the ass to make, and I wouldn't worry till the beta life cycle of a map... for obvious reasons

  5. killohurtz

    aa killohurtz Distinction in Applied Carving

    Messages:
    1,018
    Positive Ratings:
    1,181

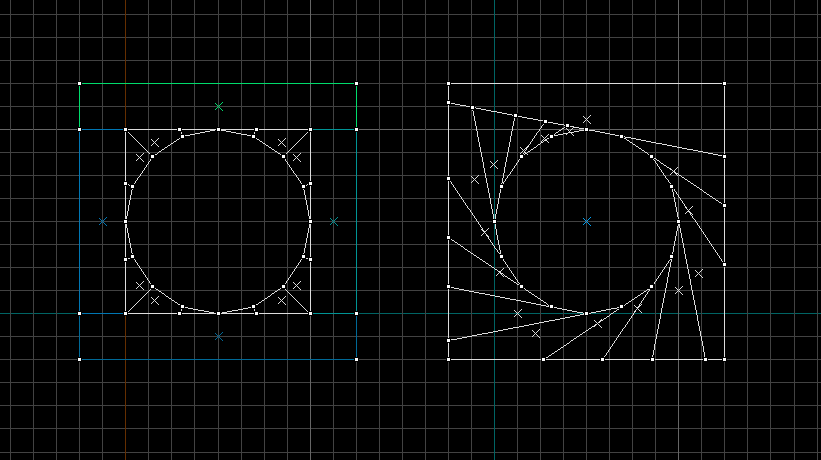

    Do not do this. Don't ever do this. The carve tool may seem like the easy solution, but it tends to split brushes in a rather unsightly manner when dealing with anything more complex than a rectangle. See the difference between a clipped arch (left) and a hole carved with a cylinder (right):

    [​IMG]

    The best way to get a circular hole in a square brush is to use vertex edit or the clip tool on an arch. Keeping your brushwork clean is a good habit to develop and allows you to more easily edit your map when you start testing and iterating.

    • Agree Agree x 4
    • Thanks Thanks x 2
    • Useful Useful x 1
  6. MoonFox

    MoonFox L10: Glamorous Member

    Messages:
    737
    Positive Ratings:
    72
    huh... I actually learned something today
    (THATS ****** TEAMWORK!) [I got sick today .>. less time to put off actually working on my map]

  7. Dovahbilly

    Dovahbilly L1: Registered

    Messages:
    30
    Positive Ratings:
    2
    As everyone else said, do not use the carve tool. It causes nightmares in the facade of an easy way out. For the future, try and plan in advance that you want a hole or a doorway somewhere, so you can create it while making the brushes for the first time instead of later. That's moreso for doorways though.

  8. iiboharz

    aa iiboharz Meme Queen

    Messages:
    734
    Positive Ratings:
    1,071
    The carve tool is rarely a justifiable tool, remember the words of the Black Mesa devs circa 2008 or something:
    [​IMG]

    • Funny Funny x 10
    • Agree Agree x 1
  9. Dr. Orange

    Dr. Orange L6: Sharp Member

    Messages:
    369
    Positive Ratings:
    278
    Everytime you carve, you make a hole in your map.

    Though, carving can be used to quickly create square holes in a square brush that you were going to fx up later. Carving is a weird tool, and I guess the only reason it is in Hammer is becuase it was in GoldSource Hammer wich had it becuase every other Quake editor at the time (when Hammer was Worldcraft) had it. For some reason.

  10. Vel0city

    aa Vel0city func_fish

    Messages:
    1,938
    Positive Ratings:
    1,542
    The concept behind the carve tool is good. Use an object to punch a hole in another object.

    The execution however, is not good. At all. It's like the opposite of good. It's absolutely and utter *insert bazillion word long curse word here*.

  11. henke37

    aa henke37

    Messages:
    1,955
    Positive Ratings:
    465
    The carve tool is in a tough spot. Sure, it is easy to generate the new faces. It is also easy to determinate which brushes need to be changed. The problem is the non concave rule. It is forced to split brushes. As has been shown in this topic, there are many ways to do the split. It's a tough task to program, especially if it has to be generic enough to work in any situation.

  12. Bogdy

    Bogdy L4: Comfortable Member

    Messages:
    187
    Positive Ratings:
    208
    Looks like the intro of James Bond movies.

    • Agree Agree x 3
    • Funny Funny x 3
  13. Pocket

    aa Pocket func_croc

    Messages:
    4,489
    Positive Ratings:
    2,377
    Vertex editing isn't about dragging sides; it's about dragging corners. That's what you're doing wrong.

  14. The Endangered Spycrab

    The Endangered Spycrab L1: Registered

    Messages:
    29
    Positive Ratings:
    0
    Hmm, All I'm trying to do is patch up the bottom of a MvM bomb hatch, so it doesn't look weird from the bottom. On the map I'm working on there is a room under the bomb hatch. I might just try to make a 360 Degree arch big enough.

  15. Xi.Cynx

    aa Xi.Cynx Former Alias: †Blade†

    Messages:
    775
    Positive Ratings:
    771
    If you get us a screenshot of the grid and 3D view we can probably assist a bit better. The more we know and can see, the better we can help. :)

  16. The Endangered Spycrab

    The Endangered Spycrab L1: Registered

    Messages:
    29
    Positive Ratings:
    0
  17. Xi.Cynx

    aa Xi.Cynx Former Alias: †Blade†

    Messages:
    775
    Positive Ratings:
    771

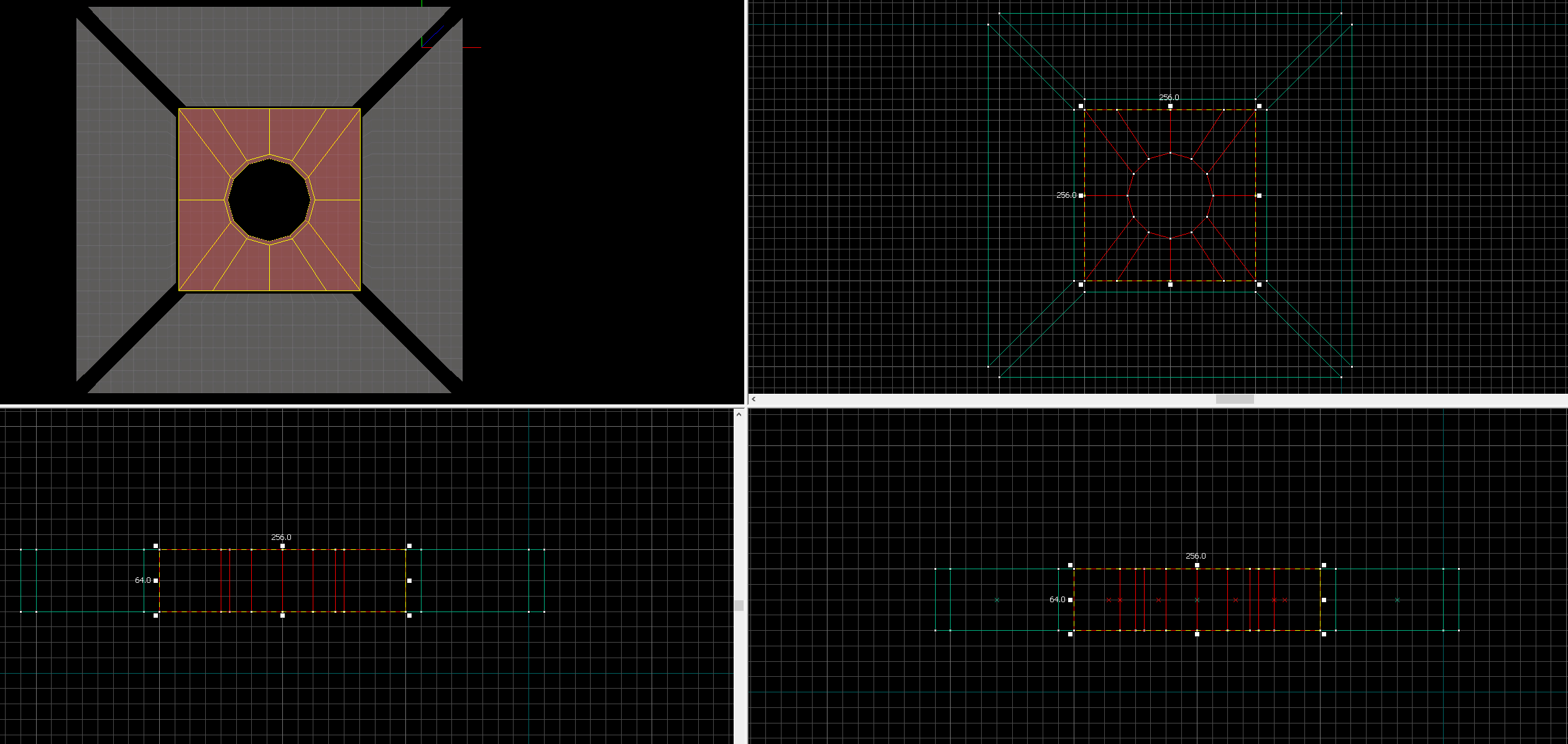

    This is what I would do. Now I'm not sure how large that prop is in the middle, so you'll have to adjust the hole size accordingly. But brushes can go through the prop without any issues, so I'd make sure you just size it up right. Make four sides angle as shown (good brush etiquette) I kept them seperated so you could see them better, but in the end you'd push them all together. Then make a circle arch that is 12 sides total and then adjust the size of the hole to match the prop hole size. Use the Vertex editor to pull out the corners of each part like mine and you'll be golden! Should take about 5 minutes tops. :)

    [​IMG]

  18. The Endangered Spycrab

    The Endangered Spycrab L1: Registered

    Messages:
    29
    Positive Ratings:
    0
    How Would I drag out the corners?

  19. Xi.Cynx

    aa Xi.Cynx Former Alias: †Blade†

    Messages:
    775
    Positive Ratings:
    771

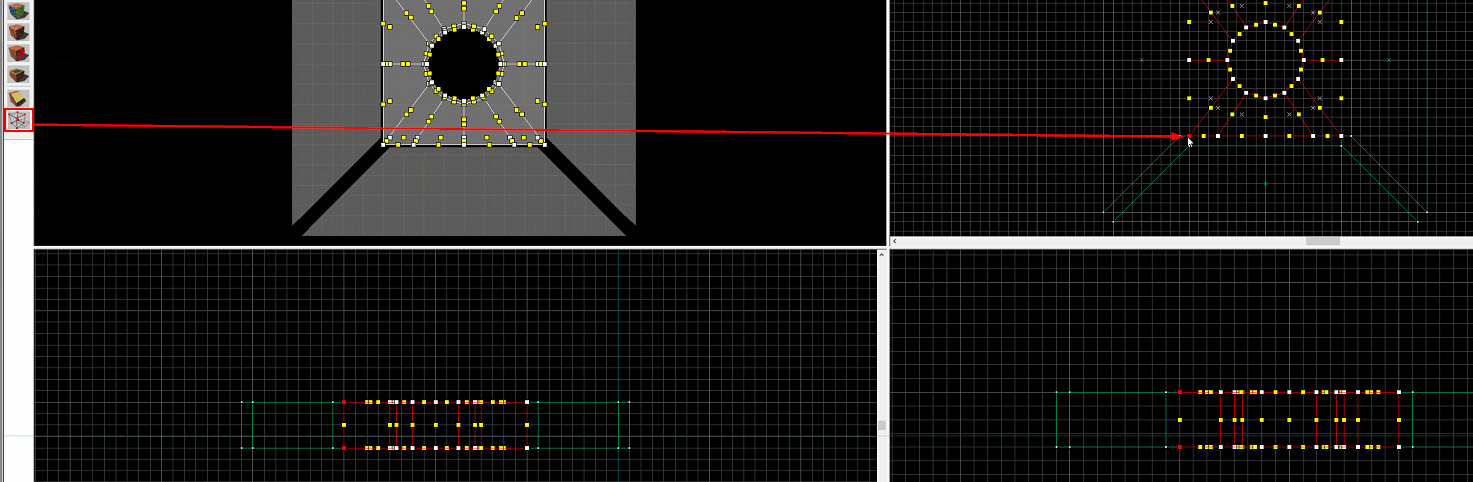

    You'll click the tool I highlighted in red on the left and then click the white corners which will move each one individually. Since there are two corners on each point, you'll have to move both to their respectful position.

    [​IMG]

  20. SC PL

    aa SC PL local shitposter

    Messages:
    380
    Positive Ratings:
    401
    [​IMG]

    • Funny x 7
    • Thanks x 1
    • Like x 1
    • Agree x 1
    • Useful x 1
    • Creative x 1
