can func_detail touch skybox?

Discussion in 'Mapping Questions & Discussion' started by Open Blade, Sep 29, 2008.

  1. Open Blade

    Open Blade L7: Fancy Member

    Messages:
    439
    Positive Ratings:
    34
    I thought it could not but I was looking through pl_badwater and many of the roofs are func_detail and they touch the skybox. I know some of the other valve maps use displacements for roofs so it's not an issue. Can somebody comment on this? Can do or no can do? My roofs are func_detail and it sure would make it much easier to make it so my skybox can touch them. I know func_detail cannot seal the map, this is for the interior of the map.

    Thanks.

  2. Nineaxis

    aa Nineaxis Quack Doctor

    Messages:
    1,767
    Positive Ratings:
    1,404
    I'm pretty sure they can touch it, just not touch the void.

  3. FaTony

    FaTony Banned

    Messages:
    902
    Positive Ratings:
    160
    YES. func_detail can touch skybox, and I'm pretty sure they can touch void, coz they aren't real entities.

  4. Bonafide

    Bonafide L6: Sharp Member

    Messages:
    314
    Positive Ratings:
    25
    func_details can touch a skybox. They can even touch the void, as long as they are not supposed to be plugging the void.

  5. A Boojum Snark

    aa A Boojum Snark Toraipoddodezain Mazahabado

    Messages:
    4,769
    Positive Ratings:
    5,535
    Last I checked any brush entity can touch the void as long as it's origin (little movable white circle in hammer) is not.

  6. VelvetFistIronGlove

    aa VelvetFistIronGlove

    Messages:
    567
    Positive Ratings:
    437

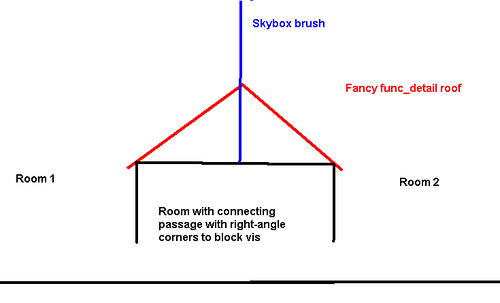

    func_details are also good for visually joining two areas of a map sealed off with skybox. See this crappy diagram for an example, but you can see a lot of instance of this in Goldrush.

    skybox and func_detail Using a single func_detail to enhance the look of the join between outdoor "rooms".
    [​IMG]

  7. Open Blade

    Open Blade L7: Fancy Member

    Messages:
    439
    Positive Ratings:
    34
    That's exactly how I am intening to do it. That's why I needed to know for sure.

    Thanks fellas
